SD20HO

SD20HO

$5,495.00

Out of stock

To order this fan call our Sales Pro’s at 469-934-6640

This is the granddaddy of our HVLS lineup, and it moves more air than existing 24’ fans on the market.  The 1500 watt motor and the VFD with 220V single phase input, not to mention the innovative telescoping down rod and the 6 high-tech blades with dual hubs, offer an unbeatable performance at a fraction of the price of other fans.  Bigger is not always better.  Smarter is better.  (Deliveries available after 4/30/2024).

Out of stock

SKU: SD20HO Category:

Description

BLADES
Each blade is constructed of injection-molded polymers (proprietary composition) with 30 patent-pending features including: Trailing-edge graduated serrations, Leading-edge Vortex Generators (VG’s), Raked Blade Tip, and complex built-in pitch contours.

GUY WIRE SYSTEM
Each fan mount has 4 loops to accept a guy wire system. Optional on the 7’ and 10’ models. Included on all HO models. Wires are 9’ long.

CONTROLLER (INCLUDED)
Each controller is IP20 on the 7’ and 10’ models, and IP66 on all HO models. Input power is 220V 1 Phase and converts it to 220V 3 phase to the motor. Run a 14/4 wire between the controller and the fan motor. Accepts Fire Suppression System relays. Typically 8”W x 10”H x 8”D. Mounts to wall.Controls on/off, variable speed, and direction (reversible). Factory-set parameters, with ramp up to speed to minimize amp spikes and over-torque.

COLORS
Hubs and down rods are aluminum colored. Motor and mounts are satin black. Blades come black and can be painted with a high adhesion paint, or we can do custom colors for high quantity orders.

WARRANTY
Each fan is warranted for 10 years on the mechanical components, 5 years on the motor, and 1 year on the VFD. Labor is not warranted.

MOTOR
Each motor is a Permanent Magnet Synchronous Motor (PMSM), totally enclosed (TE) IP65, direct drive, high-efficiency, with input of 220V 3 phase.

INSTALLATION
Our fans are designed to be easy to install. We pre-assemble as much as possible for you. The blades come balanced with the attach arms already installed, the hubs come pre-mounted on the motor, and the down rod is telescopic to avoid cutting and drilling.

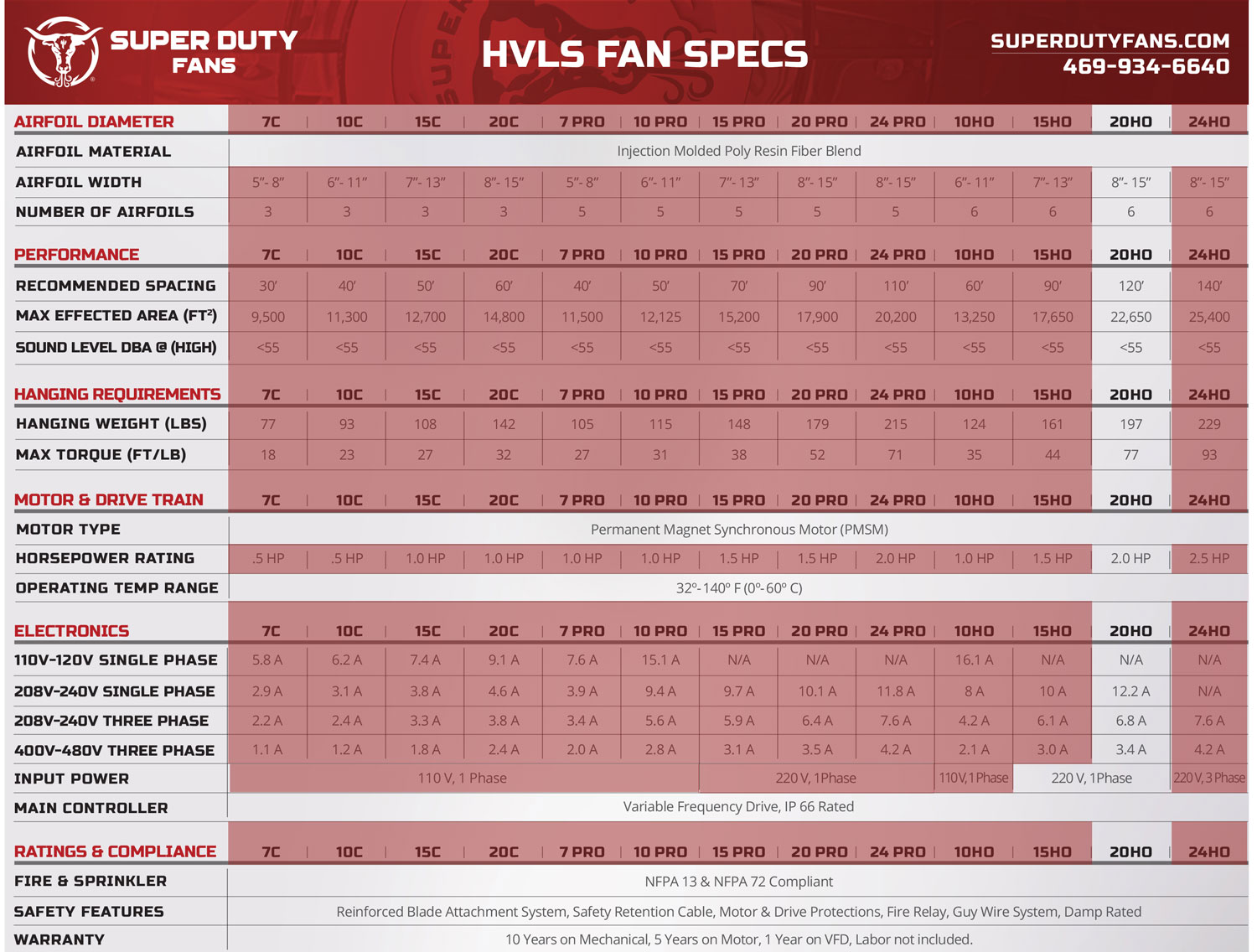

Specifications

Diameter

20’

Number of Blades

6

Overall Weight

178 lbs.

Max Speed

110 RPM

Min. Input Power

110V & 18.3A

Motor HP

1.75 HP

Min. Clearances

3’ Drop

Coverage Area

22,650 ft2

Radius

85'

...
